Piston Fillers

  • When it comes to reliable, repeatable, and accurate volumetric piston fillers that are versatile, highly flexible, easy to install and use, VKPAK Machinery is the number one manufacturer. With numerous liquid packaging solutions that suit any production environment ideally, our piston fillers are simple yet immensely effective.
  • Piston filling machines are an affordable and reliable solution to filling liquids in bottles.

View Video

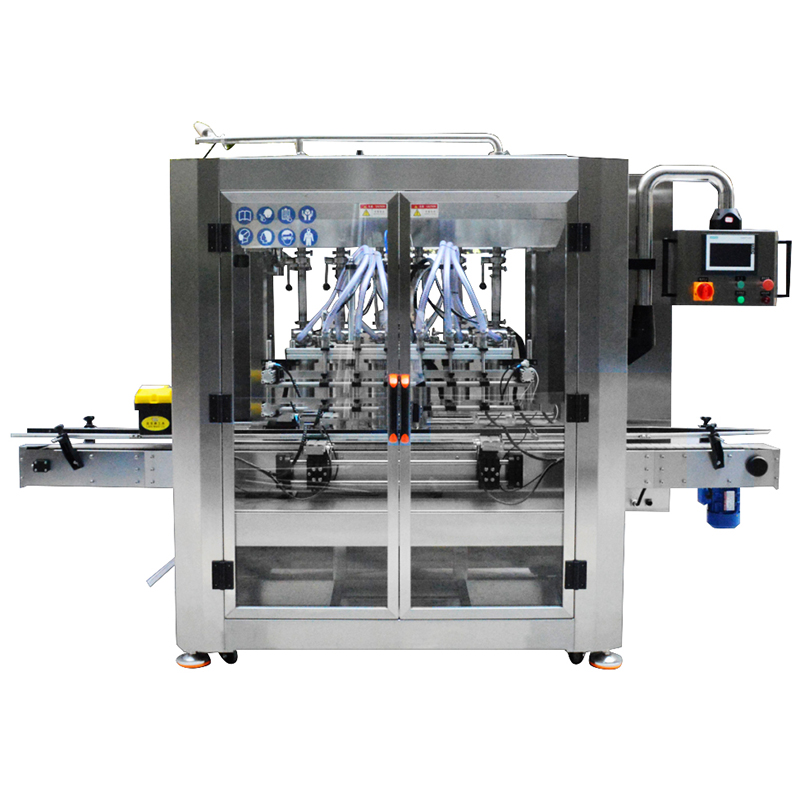

Automatic Piston Filler

  • VKPAK Automatic Linear Piston filler is an extremely flexible filler capable of filling accurately and rapidly any viscous liquids. Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or re-circulation methods. The VKPAK Automatic Linear Piston Filler is manufactured with a 304 stainless steel frame and is capable of supporting 1 to 12 fill heads. PLC controls, touch screen HMI, food grade contact parts, stainless steel and anodized aluminum construction and many more features come standard. VKPAK Automatic Piston Fillers are designed to add efficiency to any production line used in the cosmetic, food service, specialty chemical, pharmaceutical, and personal care industries. Additional options are available for sanitary, hazardous, flammable and corrosive environments.

Economic-Filling-Machine
View Video

Economic Filling Machine

It is economic filling machine,low cost and high speed.
It suitable for filling liquid such as Shower gel, hand soap, edible oil, engine oil, gasoline, lubricating oil, honey, sauce, shampoo, etc.

  • 304 Stainless steel construction and the liquid contact parts are 316 L stainless steel.
  • Pneumatic components and electrical products for famous brand products.
  • PLC and touch screen control, convenient parameter setting.
  • Servo motor Driven, one servo motor drive one piston, high speed and high accuracy.
  • Accurate filling volume, within ±0.2 for 1000 ML.
  • No bottle ,no fill, automatic warning on errors.
  • The filling blocked nozzles are anti drops, silk, and auto cut viscous liquid.
  • Easy to maintain, no special tools are required.
  • Diving nozzles for bottom up filling of foaming products.
  • Bottle mouth can be located.



View Video

Single Head Tabletop Piston Filler

  • Working under the state with electrical, safer and easy to operate.
  • The part contact material can be 304L Stainless Steel.
  • With Adjustment handle of the Filling volume , The Filling Speed can be adjustable at Will, with high filling exact.
  • Filling head adopt anti-leakage, Anti-pull and lifting filling device.
  • can filling 100-5000ml bottle
  • Eeay to operate and easy to clean
