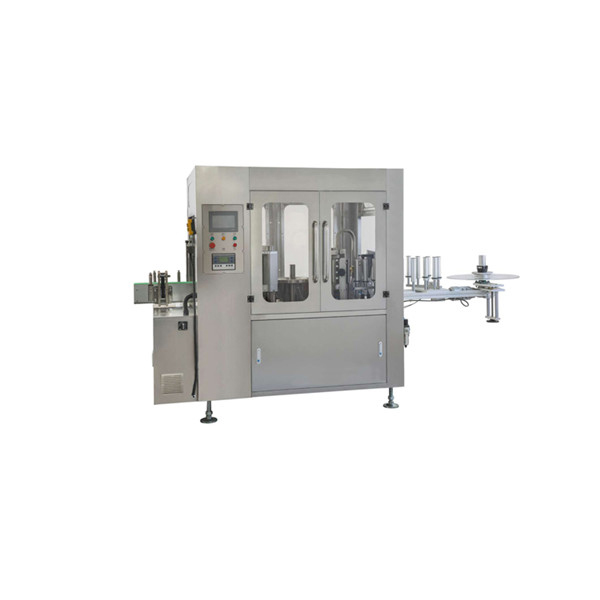

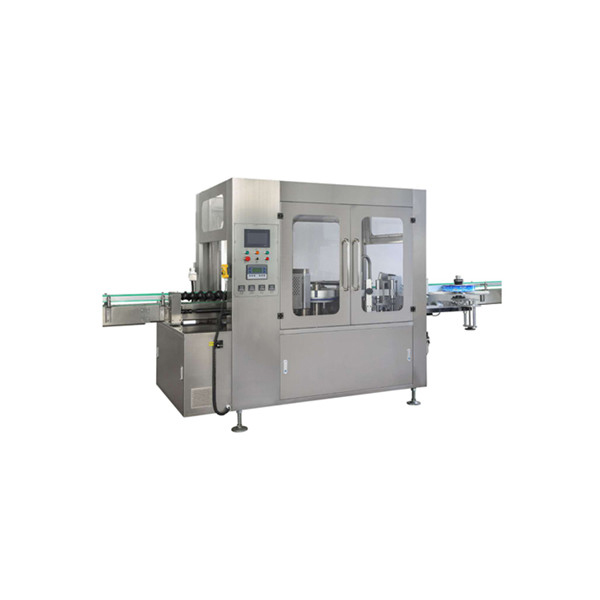

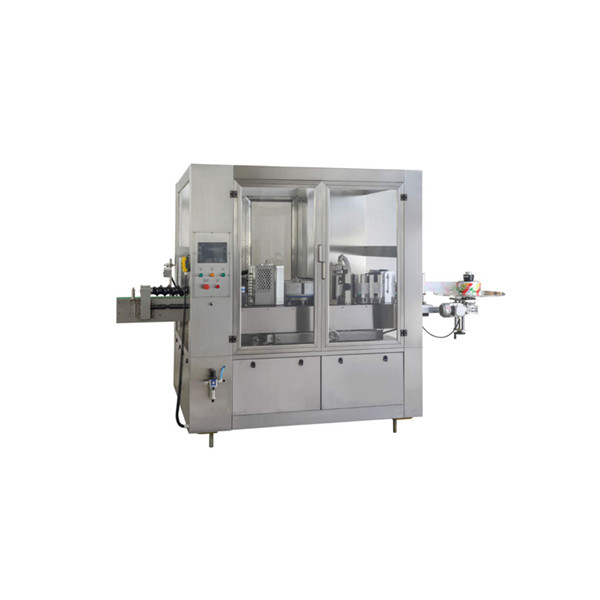

Automatic Hot Melt Glue Labeling Machine
- Labeling type: All around
- Glue type: hot melt
- Container diameter: 35mm-100mm
- 1.1).easy operation to adjust label cutting knife
- 1.2).vacuum drum made of high rigid material to reduce friction and static
- 1.3) rapid changeovers: modular design and quick release change parts have changeovers fast and easy in ten minutes
- 1.4).using handle to adjust the position of cutting knife is possible and exactly
- 1.5).vacuum manifold at the lower part of drum and cutter, made of heat & wear resistant material
- 1.6).automatic label length controller to adjust position of I-MARK
- 1. Label
- label material: OPP, PVC, PAPER etc
- label size:as demanded
- labeling method: line type
- 2. Machine description
- 2.1) roll-fed type
- 2.2) label in-fed from label station is conveyed to label in-feed roll-er through label guide roller
- 2.3) sensors will check I-MARK of label automatically when label reaches label in-feed Roller
- 2.4) as soon as the position of I-MARK is confirmed, Encoder will adjust the operation speed of label in-feed roller and then appoint the label cutting position
- 2.5) label which has been cut is conveyed to vacuum drum
- 2.6) after checking label attached on vacuum drum by sensor, label is conveyed to glue roller and then inject hot melt on label
- 2.7) to adjust containers by in-feed star wheel and do labeling in roller zone for the first time and then labeling operation will be done perfectly by side belt.
- 3. Safety
- 3.1) control: PMC, inverter
- 3.2) safety attachments
- Overload running safety equipment attached on driving zone
- Stopper for abnormity operation of in-feed star wheel
- No bottle fed (sensor check)
- overload for bottle fed (sensor check)
- no bottle no labeling
- 4. Main construct
- 4.1) conveyor part
- 4.2) in feed star wheel part
- 4.3) label station
- 4.4) vacuum drum part
- 4.5) driving part
- 4.6) hot melt applicator
- 4.7) glue roller part
- 4.8) side belt part
- 4.9) label cutting part
- 4.10) label guide roller part
- 4.11) frame part
- 4.12) air and lubricate part
- 4.13) electric part
- Features of Linear hot melt adhesive labeling machine
- 1, It applies to a row of paste volume, the use of local means glue, glue consumption of small, low running costs.
- 2, Due to the design of high-precision the machine capacity can reach high speed.
- 3, Marked station is the heart of the aircraft, designed to complete the standard trademarks station transmission constant tension; trademarks automatic correction; labeling speed (revolution speed of the machine and the speed of rotation of the synthetic bottle speed) internal matching; not send bottles marked function; glue function is not scale-free; bottle labeling before and after the replacement of the normal type;
- 4, the host used on home cam design to replace the bottle-type simple; nose tight card using pneumatic means to increase the convenience of the host.
- 5, The overall automation and control the use of PLC control, the servo system, the inverter system, temperature control systems and other needs with comprehensive control of the point.
- 6, Overload protection, security, protection of the design of complete, multi-point and fault protection device to ensure that the alarm sound and light man-machine safety.
- 7, Centralized lubrication system allows the operation of machinery lubrication components more simple, more normal, more to ensure that the machine life. The machine is simple and convenient maintenance.
- 8, a specially designed folder structure to ensure that trademarks are trademarks of trademarks has always been flexible in compacting the folder block.
- 9, Servo motor-driven traction trademark agencies, photoelectric color code detection and compensation structure of a trademark can be cut off to ensure that trademarks are timely, accurate, and neatly cut.
- 10, biaxial screw propeller institutions bottle into the bottle so that a more stable, high-speed into the bottle so much more smoothly.
- 11, Inflatable bottle of the local function is the quality of the container (grams) low, allowing users to reduce operating costs.
- 12, Double disk structure to ensure that the user feed the least time to replace the membrane, so that the effective production of longer, more productive machines.
- 13, specifically the constant tension of the membrane material detection and feedback control system ensures that the general membrane materials to achieve high quality labeling.
