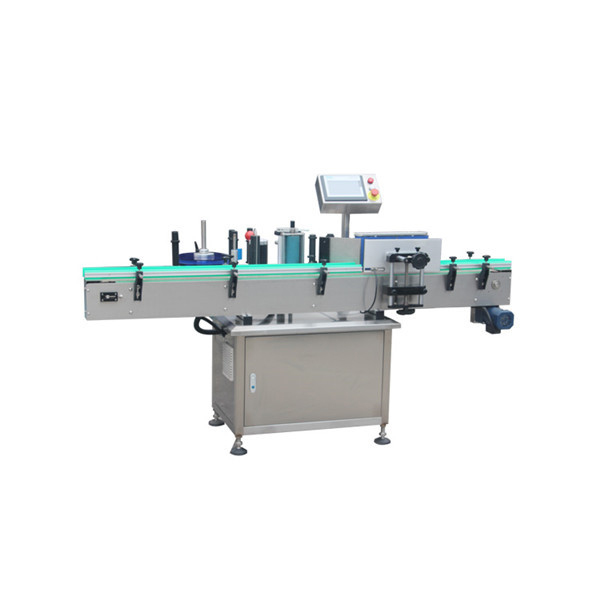

Round Bottle Labeling Machine
- Wrap-Around Automatic Labeling Machine is a stand type bottle labeling machine that is suitable for adhesive labels to be applied on cylindrical containers of various shape and material.
- For all kinds of cylindrical,tapered objects wrap around labeling.
- Widely used in food, cosmetic, chemical, pharmaceutical and other industries.It can work alone or connect to production line.
- Date printer can be added to print production date,batch lot and expiry date while labeling.
- It is suitable for a range of round bottles.
- The machine is adapted advanced technology in the world.

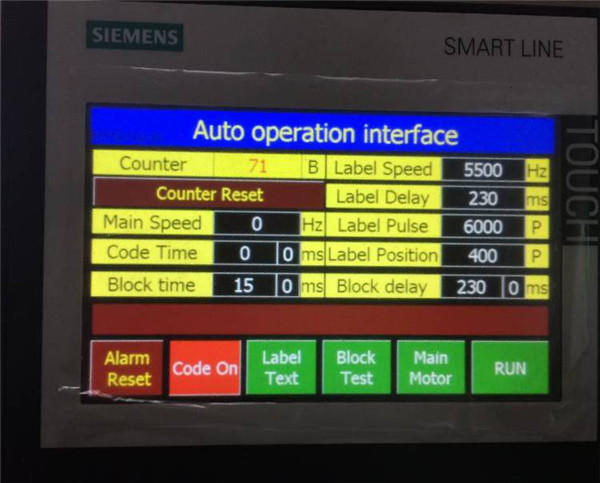

- Touch screen and PLC control
- Around 30 memory recipes for labeling parameters easy for change bottle size.
- Low or missing label detect.
- Synchronized speed selection
- Servo motor drive for high accuracy and high speed
- No bottle no labeling.
- Technical parameters
| Model | VK-VRL |
| Labeling speed (pcs/min) | 40-100 (relate to material and label size) |
| Labeling accuracy(mm) | ±1.0mm (material and label sizes are not counted in) |
| Label size(mm) | (L)20-280mm (H)25-140mm |
| Material size (mm) | Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) | φ76mm |
| Roll outer diameter(mm) | Max：Φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1450(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W |

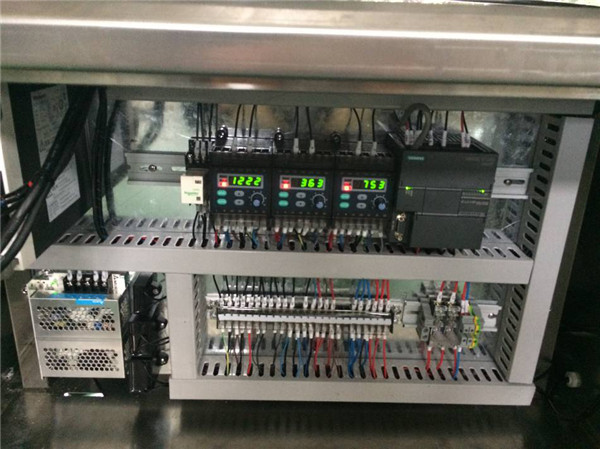

- Configuration Parts of Labeling machine (VK-VRL)
| Item | Description | Quantity | Remark |
| 1 | PLC | 1 | Siemens Made in German |
| 2 | Touch Screen | 1 | Siemens Made in German |
| 3 | Transducer | 1 | Delta Made in Taiwan |
| 4 | DC24V Electrical Source | 1 | Delta Made in Taiwan |
| 5 | Checking Label Sensor | 1 | Leuze (Made in German) |
| 6 | Checking bottle Sensor | 1 | Keyence Made in Japan |
| 7 | Optical | 1 | Keyence Made in Japan |
| 8 | Step Motor and Driver | 1 | INVONATION SHENGZHEN |
| 9 | Switch | 1 | SCHNIDER FRANCE |
| 10 | Emergency Switch | 1 | SCHNIDER FRANCE |
- if you need to print the EXP, MFG, Batch on the self-adhesive label, you need to add ribbon coding machine
