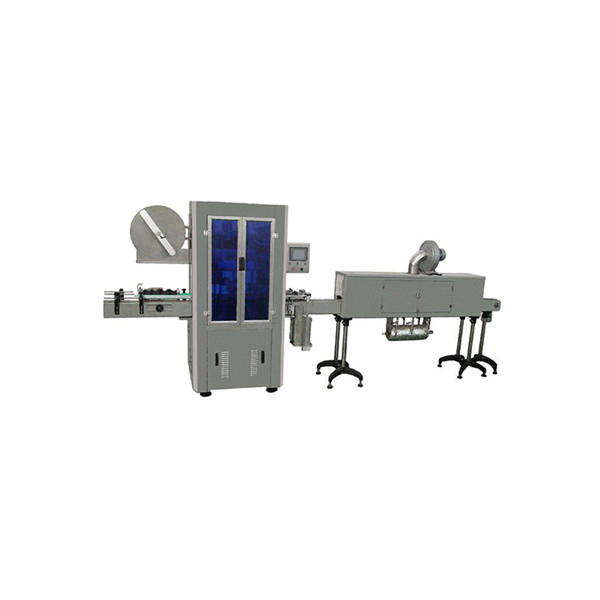

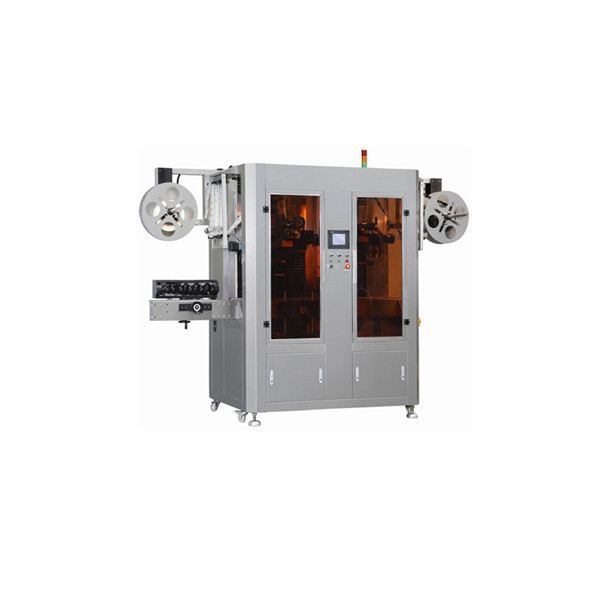

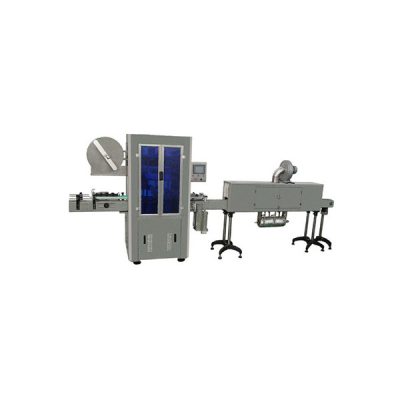

Automatic Shrinking Sleeving Labeling Machine

Automatic Shrinking Sleeving Labeling Machine

  • Automatic sleeving labeling machine is suitable for kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped
  • Driving unit:
  • Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.
  • Cutter head unit:
  • The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively.Synchronous locating device enables the tolerable error to1mm.Unit cutter head plane design in China which applies to the container of D30mm—D130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you do not need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
  • Label feeding unit:
  • Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.
  • Clean down unit:
  • Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
  • Bottle carrying system:
  • Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.
  • Machine head up and down unit:
  • It adopts motor to up and down which enable the operation more convenient.
  • Electrical Configuration
  • It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
  • Technical paremeter
Input Power1.5KW
Input VoltagePhase 3,380/220VAC
Production EfficiengcyMax300(Bottle/min) according to bottle and label size
Size of Host MachineL2100mm x W850mm x H2000mm
Applicable Diameter of Bottle BodyΦ28mm-Φ125mm
Applicable Length of Lable30mm-250mm
Applicable Thickness of Label0.03mm-0.13mm
Applicable Internal Diameter of Paper Tube(Free Adjustment)
